Explore proven production configurations engineered for commercial, industrial, and high-reliability environments across Shenzhen STHL’s advanced SMT and THT fabrication facilities.
Why 2-layer rigid boards remain the cornerstone of high-volume industrial computing, automotive controls, and commercial power infrastructure.
While multilayer boards (4 to 32+ layers) command high-density microprocessor applications, Double Sided PCBs (2-Layer boards) still represent more than 35% of total global PCB square footage produced annually. Their unmatched electrical integrity, mechanical durability, and optimal cost-to-surface ratio make them irreplaceable across mission-critical sub-systems.
Unlike tightly stacked multi-tier laminates susceptible to inner-layer thermal bottlenecks, double-sided substrates provide unobstructed heat flow. By combining top-side component distribution with dedicated bottom-side ground planes, engineers achieve lower thermal resistance, making them ideal for automotive actuators, LED lighting, and industrial power supplies.
In harsh field environments—such as mining, agricultural automation, and outdoor grid monitoring—double-sided PCBs offer straightforward trace isolation and simplified field rework. Service life frequently exceeds 15 years when manufactured under rigorous IPC Class 2 or IPC Class 3 standards with conformal barrier coatings.
The convergence of copper foil foundries, FR-4 laminate fabricators, chemical suppliers, and high-speed SMT placement inside Shenzhen creates unrivaled agility.
Within a 50-kilometer radius of our Bao'an facility, we tap into primary manufacturers for base copper, epoxy resins, solder mask lacquers, and passive components. Sourcing bottlenecks that take weeks in Western markets are resolved within 24 to 48 hours.
China's smart manufacturing infrastructure employs automated DRC (Design Rule Checking) and CAM laser direct imaging (LDI). Bare board prototypes materialize in under 24 hours, transitioning to container-volume batch fabrication without tooling stalls.
With integrated MES (Manufacturing Execution Systems) and ERP workflows, every double-sided PCB panel is assigned an indelible 2D data-matrix code. Drilling spindle feeds, copper bath chemical balances, and reflow peak temperatures are tracked down to the operator shift.
STHL has established bonded logistics channels through Shenzhen and Hong Kong. Export compliance, dual-use component clearance, and direct air/sea multi-modal freight guarantee prompt deliveries to over 90 destination nations worldwide.
A transparent overview of production tolerances, substrate categories, and metallurgical surface finishes maintained by STHL’s Shenzhen engineering plant.
| Technical Parameter | Standard Capability | Advanced / Precision Tier | Inspection & Verification Standard |
|---|---|---|---|
| Layer Count & Construction | 2 Layers (Rigid / Double-Sided) | Rigid-Flex 2-Layer Combinations | IPC-6012E / IPC-A-600 Class 2 & 3 |
| Base Substrates | Standard FR-4 (Tg 130–140°C) | High Tg FR-4 (Tg ≥ 170°C), Rogers, Aluminum | IPC-4101D Specific Slash Sheets |
| Finished Copper Thickness | 1 oz (35 μm) / 2 oz (70 μm) | 3 oz up to 6 oz (Heavy Copper) | Microsection Analysis & Metallography |
| Min. Line Width / Trace Space | 4 mil / 4 mil (0.10mm) | 3 mil / 3 mil (0.075mm) | Automated Optical Inspection (AOI) |
| Min. Finished Hole Diameter | 0.20 mm (8 mil) | 0.15 mm (Mechanical / Laser) | Plug Gauge & High-Definition Vision |
| PTH Hole Wall Copper Plating | 20 μm average | 25 μm to 35 μm (IPC Class 3 compliant) | Cross-section destructive test coupon |
| Surface Finishes | Lead-Free HASL, OSP | ENIG (Immersion Gold), Immersion Ag/Tin | X-Ray Fluorescence (XRF) Coating Thickness |
| Solder Mask Colors | Green, Matte Black, Glossy Black | White (High LED reflectivity), Red, Blue | Tape Adhesion Test (ASTM D3359) |
| Electrical Reliability Test | 100% Flying Probe Testing | High-Voltage Bed-of-Nails E-Test | Zero-Open / Zero-Short IPC-9252 |
From smart homes to harsh industrial automation, discover how double-sided boards are laid out and assembled to endure thermal cycling and electromagnetic noise.
In systems like Electronic Parking Brakes (EPB) and Electronic Stability Programs (ESP), double-sided PCBs manage high inrush currents for solenoid actuators while isolating delicate microcontroller signals. Built under stringent IATF 16949 production standards, our heavy copper double-sided boards resist chassis vibration, road debris shock, and thermal extremes ranging from -40°C to +125°C.
For Wind Turbine Control Systems and solar inverters, double-sided PCB assemblies act as the command interface. Thick dielectric FR-4 barriers paired with specialized creepage-and-clearance trace routing safeguard low-voltage sensors from high-voltage converter surges. Plated through-holes with augmented copper plating guarantee zero barrel cracking during cyclic mechanical stress.
Integrated security deployments—such as Biometric Locks and X-ray Security Inspection Machines—utilize double-sided boards for edge-computing image processing and encrypted sensor readouts. Controlled impedance routing across top and bottom layers preserves data integrity for capacitive fingerprint readers, voice processing units, and high-speed communication transceivers.
Actionable guidance for western sourcing directors, hardware procurement teams, and quality audit engineers evaluating Chinese PCBA factories.
Before copper is exposed to etching solutions, STHL engineers perform a comprehensive Design for Manufacturing (DFM) analysis. We review annular ring safety margins, verify solder dam integrity, check for acute acid traps, and confirm pick-and-place nozzle clearance on SMT boards to eradicate production bottlenecks before they occur.
Substandard components pose catastrophic field failure risks. Our incoming procurement pipeline operates exclusively with franchised distributors (Arrow, Avnet, DigiKey, Mouser) and original component fabricators. High-risk active silicon undergoes decapsulation, microscopic lead frame inspection, and XRF analysis before SMT reel loading.
We respect design exclusivity. STHL enforces strict NDAs (Non-Disclosure Agreements), air-gapped CAM file processing networks, and role-based access restrictions. Your Gerber layouts, firmware code, and customized test programs remain proprietary, secure, and shielded throughout every production batch.
How the double-sided board sector is evolving through lead-free alloys, fine-pitch automated optical inspection, and green manufacturing compliance.
With 5G and mmWave radar proliferation, double-sided designs increasingly incorporate specialized PTFE, hydrocarbon ceramic, and hybrid FR-4 blends. Maintaining tight dielectric constant (Dk) tolerances and low dissipation factors (Df) on 2-layer RF layouts avoids signal degradation while sidestepping costly multilayer RF stackups.
In accordance with ISO 14001, RoHS 3, and REACH directives, our chemical etching and surface treatment lines use closed-loop water purification, lead-free SAC305/Sn-Cu soldering alloys, and halogen-free substrate options. This ensures full global market clearance with minimal environmental footprint.

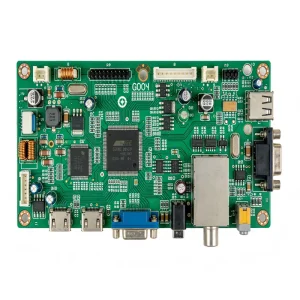

Explore additional turnkey builds from our smart home, telecommunication, radar sensing, and automotive safety production catalogs.
In-depth technical answers addressing design tolerances, cost drivers, component verification, and quality certifications.
Whether you are engineering a quick-turn prototype or transferring a multi-million-unit mass production program, STHL delivers turnkey precision, IATF 16949-certified quality control, and dependable Shenzhen factory pricing.
