China Harness Assemblies Manufacturers & Factory

High-precision IPC/WHMA-A-620 Class 3 wire harness engineering, custom cable assembly, and end-to-end turnkey electro-mechanical integration for mission-critical industrial, automotive, and medical applications.

Integrated Hardware Solutions

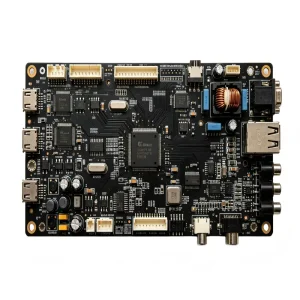

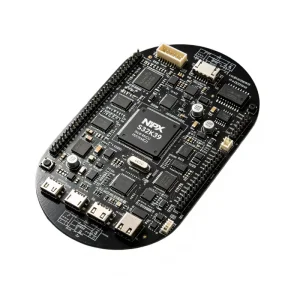

Engineered Cable & PCBA Assembly Portfolio (Part I)

Advanced electro-mechanical sub-assemblies produced at our Shenzhen facility under rigorous IATF 16949 and ISO 13485 standards.

Supply Chain Resilience

Strategic Advantages of Sourcing Harness Assemblies from China

Discover how the integration of localized raw material ecosystems, automated processing, and agile engineering delivers unmatched cost efficiency and speed-to-market.

Aggregated Component Ecosystem

Shenzhen and the Pearl River Delta house the world's most concentrated cluster of connector makers, raw conductor drawing plants, and specialized polymers (PTFE, XLPE, PUR).

  • Immediate access to TE Connectivity, Molex, JST, and Amphenol equivalents
  • Zero customs delays for primary copper and engineered resin sourcing
  • Compression of lead times from 16 weeks to under 14 days for prototypes

Automated Crimp & Termination Precision

STHL utilizes high-speed Komax automated wire cutting, stripping, and terminal crimping machines equipped with real-time Crimp Force Monitoring (CFM).

  • Sub-micron crimp height verification ensuring zero micro-fractures
  • Automated ultrasonic wire splicing for high-voltage and EV busbars
  • Elimination of manual operator errors via computerized wire routing fixtures

Multi-Tiered International Certification

We bridge Chinese industrial scale with Western quality governance, operating strictly under certified automotive and life-critical standards.

  • IATF 16949 (Automotive), ISO 13485 (Medical), and ISO 9001:2015
  • Full IPC/WHMA-A-620 Class 3 workmanship compliance
  • UL/CSA trace-certified wiring materials and complete RoHS/REACH records
Empirical Excellence

Factory Operations & Quality Metrics

Operational transparency benchmarked against international tier-1 electronics manufacturing service (EMS) standards.

20+
Years of Precision EMS & Wire Assembly Expertise
10,000m²
Dust-Free High-Efficiency Production Workshop
99.5%
On-Time Global Delivery Metric Across 90+ Countries
100%
Continuity, Hipot & Pin-to-Pin Automated Testing
Future-Proof Engineering

Global Technology Trends in Harness Assembly Manufacturing

From autonomous mobility to high-frequency industrial IoT, the wire harness industry is shifting toward higher transmission speeds, space reduction, and extreme thermal resilience.

High-Voltage (HV) & EV Powertrain Architecture

The global shift toward 800V silicon carbide (SiC) electric mobility demands wiring systems capable of managing continuous high amperage, transient surge suppression, and high thermal dissipation.

  • Shielded high-voltage orange silicone cables rated up to 1000V AC / 1500V DC
  • 360-degree EMI/RFI braid shielding terminating to die-cast backshells
  • Integrated thermal sensing thermocouples embedded directly in terminal blocks

Single-Pair Ethernet (SPE) & Miniaturization

Industrial Industry 4.0 and automotive Ethernet are transitioning away from heavy multi-pair Cat6 cables toward compact, lightweight SPE (IEEE 802.3cg) protocols.

  • 1 Gbps bandwidth over a single twisted pair up to 40 meters
  • Significant cable weight reduction up to 45% for robotic end-of-arm tooling
  • Simultaneous Power over Data Lines (PoDL) delivering up to 50W to edge sensors

AI-Powered Automated Inspection (AOI)

Manual color sequencing and connector terminal depth audits are being entirely replaced by automated optical vision systems to achieve single-digit PPM defect rates.

  • Sub-pixel color wire sequencing identification algorithms
  • Laser profile measurement of terminal seating inside plastic housings
  • Automated insertion force monitoring with real-time barcode serialization
Vertical Implementations

Localized Applications & Macro-Industry System Solutions

STHL delivers comprehensive system connectivity, solving vibration, signal integrity, and environmental degradation challenges across vital industrial sectors.

Medical Diagnostics & Patient Care

Medical wiring requires ultra-flexible, biocompatible, and non-toxic materials engineered to withstand repeated autoclave sterilization and harsh chemical wipe-downs.

  • Silicone and medical-grade USP Class VI TPU overmolding
  • Ultra-fine micro-coaxial cable bundles for endoscopic cameras and ultrasound
  • Zero-halogen, low-triboelectric noise construction for precise ECG/EEG telemetry

Industrial Automation & Robotics

Continuous dynamic flexing in robotic drag chains causes copper work-hardening and fatigue failure unless designed with specialized strain relief.

  • Continuous flexing cables rated up to 10+ million bending cycles
  • Custom oil-, abrasion-, and flame-resistant PUR external jacketing
  • Heavy-duty IP67/IP68 circular M8, M12, and 7/8" molded sensor connectors

Smart IoT & Clean Energy Storage

Energy Storage Systems (BMS) and renewable solar arrays require secure communication and high-amperage connectivity under extreme outdoor weather.

  • High-reliability CAN-bus and RS-485 communication drop cables
  • IP68 UV-resistant and weather-sealed photovoltaic connector assemblies
  • Precision crimped battery interconnect busbars handling up to 300A

Security, Vision & Access Controls

Compact camera modules, biometrics, and smart electronic locks require flexible flat cables (FFC) and micro-pitch wire-to-board harnesses.

  • 0.5mm and 1.0mm pitch LVDS and eDP video transmission harnesses
  • Custom overmolded strain relief boots preventing mechanical pull-out
  • Integrated magnetic ferrite cores for robust EMI suppression
Strategic Sourcing

Global Enterprise Procurement Demands & Technical Matrix

International procurement managers and supply chain directors evaluate harness factories on critical operational parameters. Here is how STHL satisfies global sourcing standards.

Procurement Evaluation Metric STHL Manufacturing Execution Standard Buyer Risk Mitigation Impact
Crimp Height & Pull-Force Quality Calibrated digital micrometers measuring conductor and insulation crimp height. Automated tensile pull testers logging Newtons to failure per UL 486A-B. Guarantees gas-tight terminal connections, preventing intermittent electrical opens or field fires caused by high contact resistance.
High-Voltage Hipot & Insulation Test 100% computerized pin-to-pin wiring harness test on Cirris/Cami analyzers. Dielectric withstand test up to 3000V AC and insulation resistance >100MΩ. Zero out-of-box short circuits; eliminates the risk of high-voltage breakdown in automotive and medical environments.
BOM Standardization & Cross-Referencing In-house component engineering team capable of cross-referencing Tier-1 connectors (TE, JST, Hirose) with verified domestic UL-certified alternates. Cuts BOM unit cost by 25%–40% while mitigating component obsolescence and catastrophic multi-month factory lead-time bottlenecks.
Batch Traceability & MES Tracking Lot-level tracking using 2D Datamatrix codes scanned across wire cutting, crimping, soldering, overmolding, and final continuity validation. Full compliance with automotive recall prevention standards and medical device manufacturing quality audits.
Environmental & Ingress Protection Low-pressure polyamide hot-melt overmolding, polyurethane encapsulation, and automated silicone gasket dispensing rated up to IP67 / IP68 / IP69K. Prevents moisture ingress, corrosion, and terminal pin oxidation in aggressive outdoor and marine operating conditions.
Integrated Hardware Solutions

Engineered Cable & PCBA Assembly Portfolio (Part II)

Complete turnkey system builds combining specialized surface-mount PCBAs with custom wiring harnesses and ruggedized outer enclosures.

Technical Clarity

Frequently Asked Questions: Wire Harness Manufacturing in China

Expert answers addressing tooling investments, minimum order quantities, component validation, and intellectual property security.

What engineering documents are required to receive an accurate wire harness quotation?
To provide an exact quote and Design-for-Manufacturability (DFM) review within 24 hours, our engineering department requires:
  1. Wiring Schematic / Harness Drawing: Clear wire lengths, color coding, gauge (AWG/metric), and tolerance limits.
  2. Bill of Materials (BOM): Manufacturer part numbers for all terminal pins, plastic connector housings, seals, heat-shrink tubing, and sleeving.
  3. Pinout / Point-to-Point Table: Defining terminal assignments from Connector A to Connector B, including shield drain routing.
  4. Special Process Requirements: Details regarding overmolding resins, potting compounds, pull-force specs, and dielectric testing limits.
How does STHL prevent the use of counterfeit or substandard electronic components and terminals?
STHL maintains strict supply chain security through our ISO 9001 and IATF 16949 incoming quality control (IQC) protocols. Original brand connectors (such as TE, Molex, Amphenol, JST) are procured exclusively through franchised direct distributors (Arrow, Avnet, Digi-Key, Mouser) with complete Certificates of Conformance (CoC). When domestic equivalents are specified for cost optimization, samples undergo cross-sectional metallurgical crimp analysis, micro-ohm contact resistance verification, and salt-spray corrosion chamber testing before production release.
Does your factory handle low-volume prototype orders, or only mass production?
STHL enforces a strict No MOQ (Minimum Order Quantity) policy. We actively support hardware start-ups and enterprise R&D teams during early design iterations, producing pilot runs as small as 5 to 50 harnesses. Once your design reaches full validation, our 7 automated SMT lines and high-speed multi-station wire crimping lines can scale effortlessly to hundreds of thousands of assemblies monthly without transitioning suppliers.
What automated testing does each harness undergo prior to shipping?
100% of our wire harnesses undergo computerized automated testing on dedicated Cirris or Cami testing platforms. Testing includes:
  • Continuity and Mis-Wire Detection: Verifying 100% pin-to-pin wiring fidelity.
  • Low-Voltage Resistance: Ensuring no cold solder joints, improper crimps, or pinched conductors.
  • High-Voltage Hipot Isolation: Checking for insulation punch-through, dielectric breakdown, and pin-to-pin leakage up to 1500V DC.
  • Mechanical Retention: Non-destructive pull-force verification ensuring terminals are fully latched within their housings.
How does STHL manage IP protection and proprietary engineering files?
We hold intellectual property protection as a bedrock principle. Prior to receiving Gerber files, schematic diagrams, or 3D harness models, STHL routinely executes bilateral, legally binding Non-Disclosure Agreements (NDAs). Design databases are stored on access-controlled, firewalled servers with role-based permissions, ensuring your proprietary schematics, firmware, and mechanical designs remain completely confidential.
