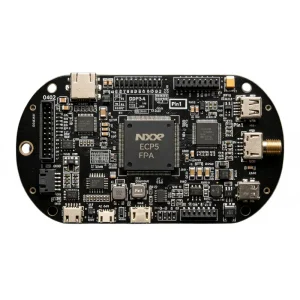

High-Quality Video Doorbell PCB Assembly--STHL Manufacturers, Service

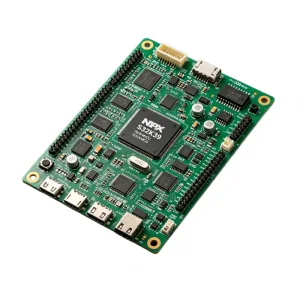

High-Quality Safety Inspection Equipment PCB Assembly--STHL Manufacturers, Factory

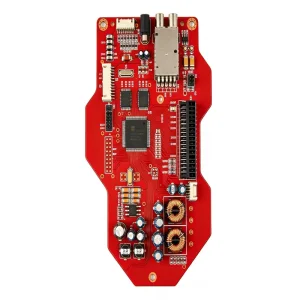

High-Quality Webcam PCB Assembly--STHL Manufacturers, Factory

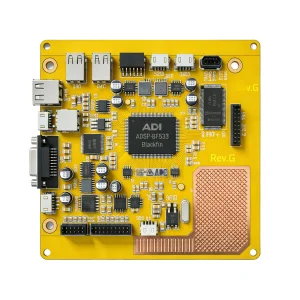

High-Quality Smart Home Energy Management System PCB Assembly Service, Factories

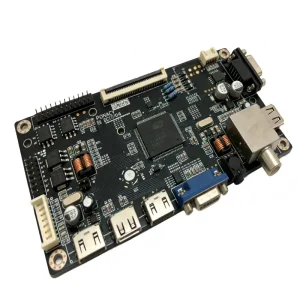

High-Quality Smart Lock PCB Assembly--STHL Factories, Factory
Analyzing modern wiring architecture challenges: miniaturization, electromagnetic shielding, environmental ruggedization, and vendor consolidation.
Global procurement teams are shifting away from fragmented sub-assembly procurement. Consolidating wire harness fabrication, printed circuit board assembly (PCBA), and box-build mechanical integration under a single Tier-1 China contract manufacturer eliminates multi-tier logistics overhead, eliminates vendor finger-pointing during test discrepancies, and compresses overall landed costs by up to 24%.
With high-speed automated machinery, multi-gigabit Ethernet interfaces, and medical diagnostics operating in noisy industrial environments, custom cable assemblies must deliver flawless signal attenuation characteristics. We deploy customized dual-layer aluminum foil screening, tinned copper braiding (over 85% coverage), and controlled impedance differential twisted pairs compliant with strict EMC directives.
Automotive powertrains, remote renewable energy farms, and hazardous monitoring systems encounter continuous mechanical vibration, moisture ingress, and thermal fluctuations ranging from -40°C to +125°C. Our assemblies utilize fluoropolymers (PTFE/ETFE), PUR jackets, custom low-pressure overmolding (macromelt), and IP67/IP68 sealed circular connector solutions.
Engineered interconnect assemblies built strictly to international compliance frameworks including IATF 16949, ISO 13485, and UL standards.
High-voltage battery interconnect harnesses, CAN/LIN vehicle bus assemblies, and HUD sensor wiring harnesses manufactured strictly according to IATF 16949 parameters with full automated crimp force monitoring (CFM).
ISO 13485 certified biocompatible cable sets, patient monitoring sensor leads, and defibrillation-resistant assemblies designed with flexible silicone jackets, autoclave tolerance, and rigorous dielectric breakdown testing.
Continuous flex (drag chain) cabling rated for multi-million bend cycles, oil-resistant servo feedback lines, and sensor-actuator M12/M8 industrial distributions guaranteeing uninterrupted operation on factory floors.
Heavy-gauge DC power feeder links, solar inverter connection harnesses, and smart metering communication looms built to withstand continuous UV radiation, high ambient temperatures, and ozone degradation.
A structured engineering comparison showing how advanced manufacturing replaces conventional wiring bottlenecks.
| Performance Dimension | Legacy Assembly Practices | STHL Advanced Automated Standard | Long-Term Impact on Sourcing |
|---|---|---|---|
| Crimp Validation | Manual crimping with periodic pull gauge testing | Real-time dynamic CFM (Crimp Force Monitoring) on automatic lines | Virtual elimination of terminal pull-out failures and intermittent field faults |
| Testing Coverage | Simple manual continuity checks with buzzer boxes | High-voltage cirris harness testing (Hi-Pot, open/short, resistance <0.01Ω) | 100% compliance with IPC-A-620 Class 3 mission-critical requirements |
| Component Traceability | Paper travelers with lot-level variance risks | Full MES barcode/QR tracking linking crimp tools, operators, and raw reels | Immediate automotive/aerospace root-cause auditability within minutes |
| Environmental Ingress | Standard PVC heat shrink and manual hot melt tape | Low-pressure macromelt polyamide overmolding & IP68 molded strain reliefs | Extended lifecycle in oil, chemical, moisture, and high-vibration environments |
| Supply Chain Integration | Multi-vendor fragmentation (Harness maker vs SMT supplier) | True Turnkey: In-house Bare PCB + High-Density SMT + Harness Assembly | 35% lead-time compression and unified quality warranty under ISO 9001/IATF |
End-to-end quality validation protocols that protect your brand and accelerate international regulatory certifications.
Our production floor operates in strict adherence to IPC-WHMA-A-620 Class 2 and Class 3 workmanship criteria. From terminal crimp height and width micrometric validation to solder joint fillet geometry, every assembly conforms to worldwide aerospace, medical, and industrial standards.
Our intelligent Manufacturing Execution System (MES) links every raw terminal, cable reel, heat shrink, and connector housing to its origin lot. With component sourcing backed by relationships across 100+ authorized global distributors, we ensure strict anti-counterfeiting protocols and full traceability.
Before reviewing your proprietary CAD wire diagrams, 3D harness models, or BOM pricing details, we execute ironclad bilateral Non-Disclosure Agreements (NDAs). Your firmware, wiring schematics, and mechanical specifications are stored within segregated, role-permissioned servers.
Key technical and commercial answers for sourcing managers, quality engineers, and hardware leaders.
Combining PCBA and custom wire harnesses under STHL guarantees end-to-end electrical interface validation. Connectors fit mating headers without tolerance stack-up issues, harness lengths match mechanical enclosures precisely, and overall system testing is conducted before dispatch—eliminating multi-vendor coordination overhead.
We perform automated micro-section metallurgical cross-section analysis to verify crimp compaction, mechanical pull-force destruction testing according to UL486A/B specifications, dynamic Crimp Force Monitoring during production, and 100% digital electrical continuity/Hi-Pot insulation resistance testing.
Yes. When long lead times or high minimum orders impact brand names (such as TE Connectivity, Molex, JST, or Amphenol), our senior engineering team proposes verified equivalent domestic or regional alternatives that match pitch, insertion force, current rating, and flame resistance (UL94V-0), cutting BOM cost by up to 30%.
STHL maintains a strict No-MOQ policy. We support hardware teams with quick-turn rapid prototypes (typically 5 to 7 days after drawing approval) to validate form, fit, and EMC compliance prior to scaling into full-rate serial production runs on the same manufacturing line.
Explore additional mission-critical PCBA and electromechanical units manufactured within our Shenzhen cleanroom facility.
China Ward Monitoring System PCB Assembly--STHL Factories, Factory

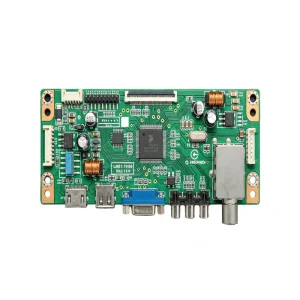

OEM Metal Detector PCB Assembly--STHL Manufacturer, Manufacturers
High-Quality Gas Leak Alarm PCB Assembly--STHL Service, Factories

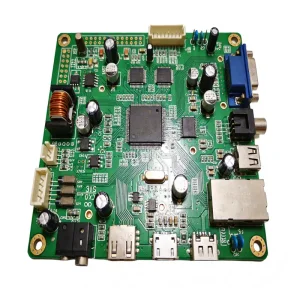

High-Quality Heads-Up Display (HUD) PCBA Assembly--STHL Manufacturer, Factories

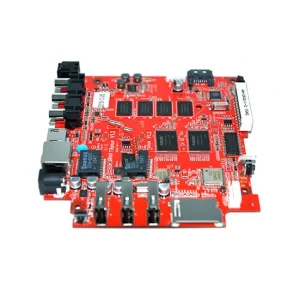

OEM Magnetometer PCBA Assembly--STHL Manufacturers, Factory
