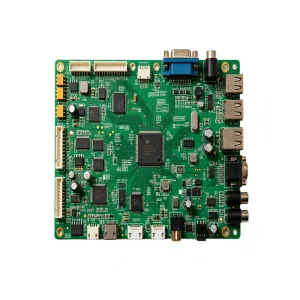

OEM Webcams PCBA Assembly--STHL Manufacturer, Service
Explore Specification →
OEM PoE Power Supply (Power over Ethernet) PCB Assembly--STHL Manufacturer, Factories
Explore Specification →
OEM Noise Monitoring Equipment PCB Assembly Manufacturer, Service
Explore Specification →
OEM Smart Meter PCB Assembly Manufacturers, Factories
Explore Specification →
High-Quality Physiological Monitoring Equipment PCB Assembly--STHL Manufacturers, Factory
Explore Specification →The electronic hardware life cycle has compressed from quarters to weeks. Hardware engineering teams worldwide require intelligent EMS partners capable of mitigating supply chain volatility while sustaining micro-pitch assembly precision.
Traditional New Product Introduction (NPI) cycles of 8-12 weeks are unviable for competitive consumer electronics, telecommunications, and IoT deployments. Rapid prototyping demands instant algorithmic DFM validation and swift 24 to 48-hour SMT line turnarounds.
The ubiquity of Edge AI processors and multi-core architectures has driven trace/space geometry below 3/3 mil, alongside fine-pitch 0.35mm BGAs, 01005 passive components, and complex package-on-package (PoP) requirements that stress standard automated optical inspection systems.
Unpredictable geopolitical tariffs and semiconductor component obsolescence necessitate agile bill-of-materials (BOM) cross-referencing. Leading manufacturers integrate direct API connections to tier-1 global distributors and authorized semiconductor fabs for instant part matching.
Multinational procurement executives encounter friction with fragmented suppliers: fabrication in one locale, component assembly in another, and testing conducted offsite. STHL centralizes operations under one unified roof.
Every active and passive component is sourced via verified franchised distributors (Arrow, Avnet, Digi-Key, Mouser) or direct manufacturers, audited via rigorous incoming electrical inspection, decapsulation testing, and X-ray fluorescence (XRF) material verification.
Engineering innovation thrives on validation without penalties. From a 5-unit proof-of-concept run for angel venture demos to 500,000-unit continuous production, our 7 high-speed SMT lines flex dynamically without costly line re-tooling penalties.
Before physical tooling initiates, 50+ senior hardware engineers execute automated design-for-manufacturability (DFM) and design-for-assembly (DFA) audits, identifying thermal bottlenecks, trace layout violations, and solder bridging risks.
Intellectual property leaks represent catastrophic operational risk. STHL executes binding bi-lingual Non-Disclosure Agreements (NDA) prior to receiving Gerber, ODB++, or BOM archives, segmenting design files across isolated, access-controlled factory networks.
Enterprise-grade production verified by audited capacity metrics, digital Manufacturing Execution Systems (MES), and strict cleanroom operations.
Every PCBA moving across our factory floor is tracked through our enterprise MES and ERP system, establishing an immutable lot-traceability thread from raw bare copper to final crating.
Comprehensive engineering review of layer stack-ups, pad geometries, via protection, and laser-cut electro-polished nano-coated stencil creation.
Strict counterfeit inspection protocols, automated component verification, and dry-cabinet storage for moisture-sensitive SMD IC packages.
Fully automated solder paste printing with inline SPI inspection, dual-lane high-speed Yamaha and Fuji pick-and-place lines, and 10-zone reflow profiling.
Nitrogen-inerted selective soldering and standard wave soldering for high-stress connectors, high-voltage transformers, and thermal-relief components.
100% 3D Automated Optical Inspection (AOI), 3D AXI X-Ray for hidden BGA/QFN solder voiding (<10%), and automated In-Circuit / Bed-of-Nails testing.
Automated robotic silicone/acrylic conformal coating for harsh environments, IC firmware programming, and custom wire harness assembly.
Full mechanical enclosure integration, final functional burn-in testing, vacuum anti-static ESD packaging, and direct door-to-door worldwide courier delivery.
Verified physical parameters supported by STHL’s automated production lines. Verified feasibility audits available within 2 hours of RFQ submission.
| Parameter | Factory Operational Capability & Standards |
|---|---|
| PCB Substrates Handled | FR-4 (Standard & High-Tg), Rigid-Flex, Flexible Polyimide, Aluminum Metal-Core (MCPCB), Rogers High-Frequency, Ceramic, Thick Copper, Halogen-Free |
| Assembly Technologies | SMT (Surface Mount), THT (Through-Hole), Mixed-Mount, PoP (Package-on-Package), Double-Sided SMT, Press-Fit Connector Assembly |
| Component Pitch & Placement | Down to 01005 passives, 0.3mm pitch BGA / Micro-BGA, QFN, DFN, CSP, WLCSP, fine-pitch connectors down to 0.4mm lead pitch |
| SMT Placement Precision | ±0.025 mm (±25 μm) at 3σ for micro-BGAs and complex ICs; maximum board size 610 mm × 510 mm |
| Inspection & Verification | 3D Solder Paste Inspection (SPI), Online 3D AOI (Post-Reflow), High-Resolution 3D X-Ray Inspection (BGA/Voiding Analysis), In-Circuit Testing (ICT), Functional Circuit Testing (FCT), Thermal Shock, Burn-in Chambers |
| Solder Alloys Supported | Lead-Free RoHS / REACH compliant (SAC305, Sn-Ag-Cu), High-Reliability Low-Void Alloys, Leaded Alloys (Sn63Pb37) upon medical/defense authorization |
| Compliance & Certifications | IATF 16949 (Automotive), ISO 13485 (Medical Devices), ISO 9001 (Quality Management), ISO 14001 (Environmental), IPC-A-610 Class 2 & Class 3 Standards |
| Turnaround Time (Lead Time) | Fast-turn prototyping: 24 to 48 Hours | Low-to-Medium batches: 5 to 9 Working Days | High-Volume Mass Production: 2 to 3 Weeks |
Deploying products across global territories requires rigorous adherence to regional environmental and functional directives. STHL acts as your operational compliance firewall.
100% compliance with EU RoHS 3 (Directive 2015/863) and REACH (EC 1907/2006) chemical restrictions. Full material declarations and Conflict Minerals Reporting Templates (CMRT) supplied on demand for Tier-1 supply chains.
UL-certified circuit boards and flame retardancy ratings (UL 94V-0). Support for FCC Declaration of Conformity testing, IPC-A-610 Class 3 medical and aerospace high-rel builds, with full serialization and functional flash validation records.
Our engineering support team interfaces across US, European, and Asian working time zones, eliminating cross-border misunderstandings. Instant English engineering queries (EQ) resolved within hours to prevent fabrication stops.
Electronics packaging is transitioning toward higher computational densities, advanced power management, and thermal dissipation architectures. Discover our technology deployment timeline.
Adoption of next-generation optical placement nozzles and controlled nitrogen atmosphere vacuum reflow soldering to eradicate solder voiding under large thermal-pad power ICs and next-gen neural silicon.
Integrating passive resistors, capacitors, and discrete dies directly into the inner laminate layers of the PCB substrate, unlocking 40% surface area reductions for mission-critical aerospace and medical wearables.
Specialized low-loss tangent dielectric processing (Rogers 4350B, Megtron 6) tailored for 77GHz automotive millimeter-wave radar sensors, satellite transceivers, and 5G/6G communication infrastructure modules.
Deep-learning algorithmic visual inspection engines that surpass static pixel-comparison algorithms, eliminating false-positive deflections and guaranteeing 100% true defect containment across complex soldering joints.
Explore our end-to-end manufactured controller, IoT, telemetric, and interface modules verified for industrial longevity.
China GNSS Module PCBA Assembly--STHL Manufacturer, Factories
Explore Specification →

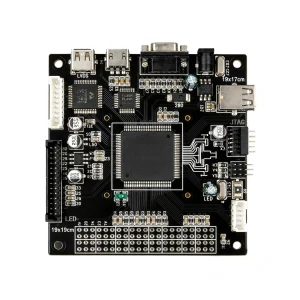

High-Quality Temperature and Humidity Recorder PCB Assembly Service, Factory
Explore Specification →
China Biometric Lock PCBA Assembly--STHL Manufacturers, Factories
Explore Specification →
China Sensor Interface Modules PCBA Assembly Service, Factory
Explore Specification →
High-Quality Exhaust Gas Monitoring System PCB Assembly Manufacturers, Factory
Explore Specification →
High-Quality Water Heater Controller PCB Assembly Service, Factory
Explore Specification →
OEM Smoke Detector PCBA Assembly--STHL Factories, Factory
Explore Specification →

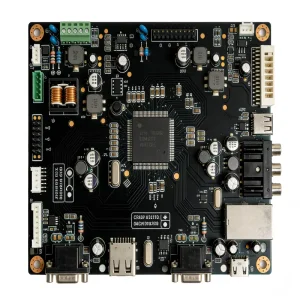

High-Quality Network Printers PCBA Assembly--STHL Manufacturer, Factories
